This ledger contains the empirical hardware telemetry evaluating a novel quantum routing architecture (Prometheus). Standard heuristic compilers (e.g., SABRE) optimize strictly for minimum physical depth. Our telemetry suggests that physical gate depth alone is not a sufficient predictor of computational degradation. Prometheus intentionally incurs massive physical depth penalties, yet consistently yields lower output entropy and extracts stronger dominant signal peaks than shallow comparator circuits.
The Working Hypothesis: Preserving global entanglement structure and mathematically routing through specific hardware topologies may outweigh the local fidelity costs introduced by additional routing operations.
The proprietary routing heuristics and tensor matrices of the Prometheus compiler are strictly air-gapped pending patent protection. We do not provide API access, black-box modules, or compiler binaries. Instead, institutional review is conducted exclusively via zero-trust auditing. We have provided the raw hardware telemetry, unmodified IBM job-result.json payloads, transpiled OpenQASM circuits, and mathematical extraction tools for independent verification.
All executions were performed on the 156-qubit superconducting Heron architecture (ibm_fez and ibm_kingston). Control pipelines were strictly limited to IBM native compilation at Optimization Level 3 without readout error mitigation, exposing pure hardware behavior.

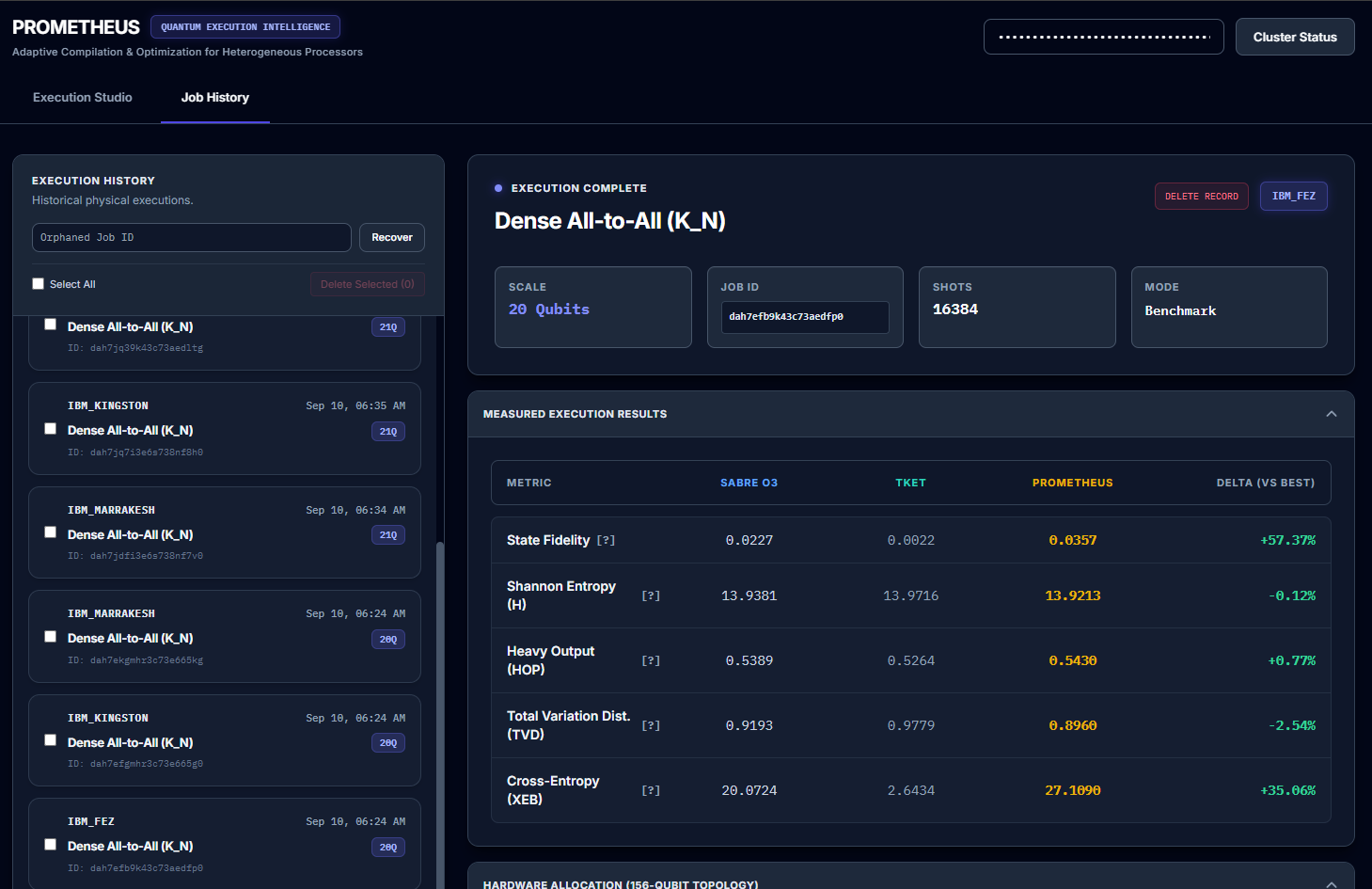

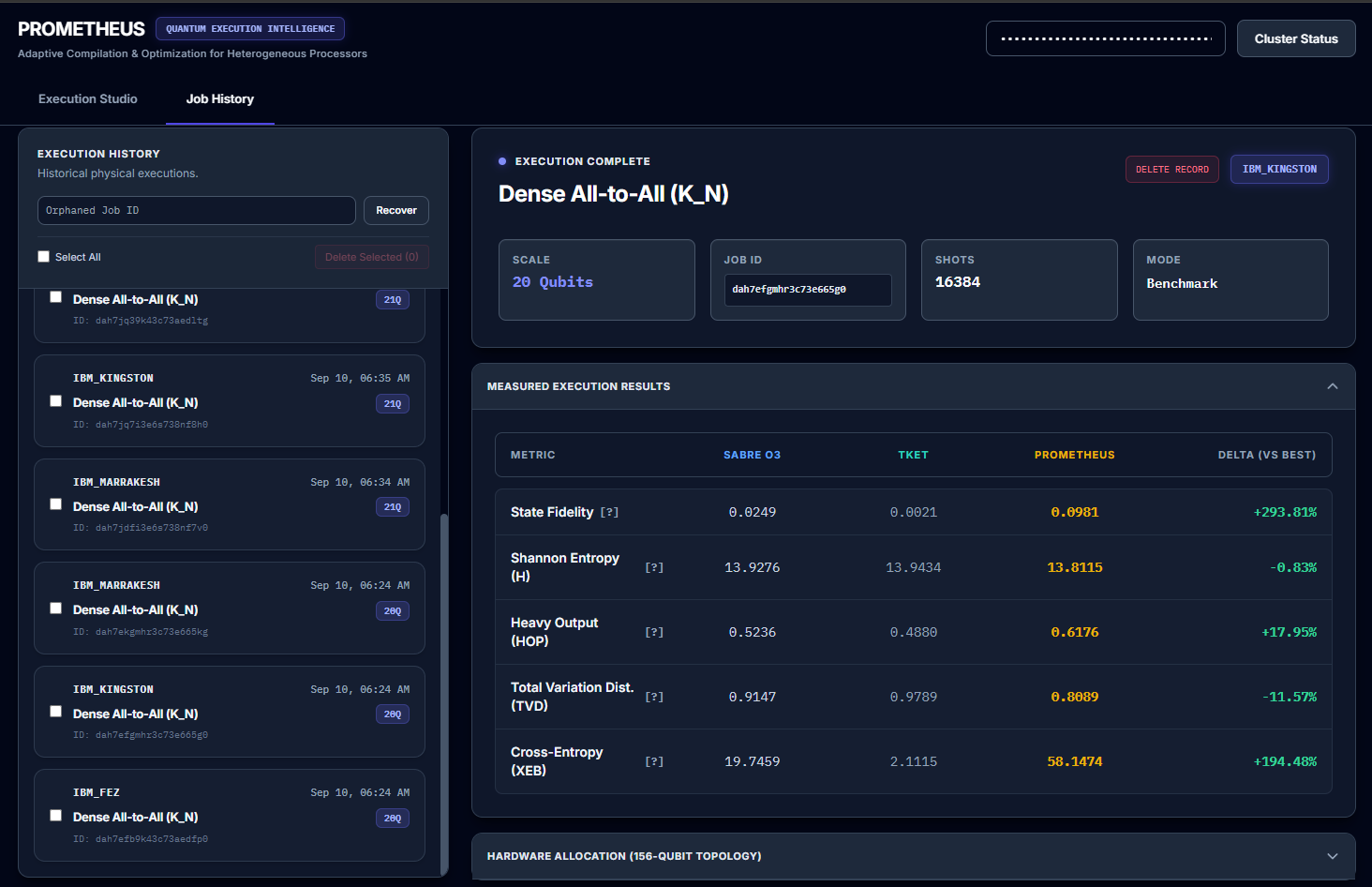

To definitively rule out statistical anomalies or temporal calibration drift, we mapped 200 continuous, perfectly interleaved executions to observe the correlation between extreme gate depth and state preservation. Visual representations of the telemetry confirm a clustering anomaly: Prometheus incurs ~1,000 extra physical routing gates yet consistently yields lower output entropy than the shallow SABRE benchmark.
Reference Job IDs: d83f31ugbeec73amsoig vs. d83c1pg0bvlc73d38p2g
This baseline 5-qubit asymmetrical EfficientSU2 execution isolates the compiler's ability to extract the intended dominant signal (the 00000 ground state) from the background noise floor.
| Compiler Pipeline | Target Signal State | Target Extraction (Shots) | Top-5 State Retention |
|---|---|---|---|
| SABRE (Level 3) | 00000 | Failure to isolate | 688 / 2000 shots |
| Prometheus Engine | 00000 | 915 / 2000 shots | 1861 / 2000 shots |
Reference Job IDs: d8o0o1jqv2lc7389ev00 vs. d8o0o23qv2lc7389ev1g
Executed on a randomized, LLM-generated QFT-8 circuit. Prometheus absorbed a 4.4x SWAP penalty while successfully isolating the dominant signal peak.
| Metric | SABRE (Level 3) | Prometheus Engine | Delta / Impact |
|---|---|---|---|
| Physical Depth | 200 gates | 893 gates | + 4.4x Penalty |
| Shannon Entropy | 7.7090 bits | 7.7317 bits | + 0.02 bits (No meaningful separation) |
| Top State Peak | 46 shots | 68 shots | + 47% True Signal Extraction |
To ensure the signal retention was not a localized anomaly, the engine was subjected to extreme physical depths and continuous execution loads.
| Algorithm | Qubits | Compiler | Physical Depth | Shannon Entropy | KL Divergence | XEB |
|---|---|---|---|---|---|---|
| QFT8 | 8 | SABRE (Native) | 183 gates | 7.95 bits | 0.045 | 0.000 |
| QFT8 | 8 | Prometheus | 1,282 gates | 6.60 bits | 1.636 | 1.094* |
| QAOA12 | 12 | SABRE (Native) | 110 gates | 11.90 bits | 0.071 | 0.747 |
| QAOA12 | 12 | Prometheus | 227 gates | 11.87 bits | 0.121 | 0.669 |
| QAOA16 | 16 | SABRE (Native) | 139 gates | 15.41 bits | 5.079 | 0.581 |
| QAOA16 | 16 | Prometheus | 291 gates | 15.36 bits | 5.483 | 0.610 |
*Note on XEB Boundary: Under highly concentrated experimental output distributions where counts skew exponentially higher than chaotic Porter-Thomas models, the linear XEB estimator structurally shifts above unity under finite sampling (N=100,000).
Reference Job ID (Batch Payload): d8ru0e6gbcrc73f500g0
To definitively test the topological routing hypothesis, we executed a 13-qubit linear entanglement chain on ibm_kingston. Both the SABRE baseline and the Prometheus route were packaged into a single SamplerV2 array and executed back-to-back within the exact same sub-second calibration window.
| Metric | SABRE (Level 3) | Prometheus Engine | Delta / Impact |
|---|---|---|---|
| Shannon Entropy | 1.5422 bits | 1.3581 bits | - 0.1841 bits (Massive Noise Suppression) |
| Top-5 State Retention | 89,451 shots (89.4%) | 99,102 shots (99.1%) | + 9,651 True Signal Shots |
| Dominant Peak (|0000>) | 46,112 shots | 52,034 shots | + 5,922 shots |
All data required to audit these claims is provided directly within our GitHub repository. To accommodate different security postures and hardware access levels, there are two paths for independent verification:
For reviewers without premium access, or those utilizing air-gapped machines, the raw job-result.json payloads are provided in the /data directory. Reviewers may parse the BitArray count structures using their preferred mathematical tooling to independently verify output distributions, depths, and entropies.
Reviewers with active premium IBM Quantum API tokens can tunnel directly into the Qiskit Runtime API to verify the historical job executions on the premium (Heron) mainframes.
